Logo Xusol New EnergyXUSOL
CatalogRetail & Wholesale/ESS ยท Inverter ยท EV ยท PV ยท LED

Products
for every scale
of installation.

From 3 kW residential storage to 5 MWh containers: LiFePO4 batteries, hybrid inverters, EV charging, PV modules and LED lighting.

01C&I

Commercial & industrial storage

Container and all-in-one systems for microgrids, charging stations and off-grid plants, with smart management of grid, PV and generator.

Grid Based System Solution
GRID-ESS

Grid Based System Solution

Grid-forming system that integrates grid, solar, storage and loads. EMS, STS, control panels and electrical safety in a single scalable architecture.

Size
100 kW / 215 kWh โ†’ 2.5 MW / 5 MWh
Cells
LFP 3.2 V 280 Ah / 314 Ah
DC voltage
768 V โ†’ 1,331.2 V
Cycles
>6,000 @ 90% DOD

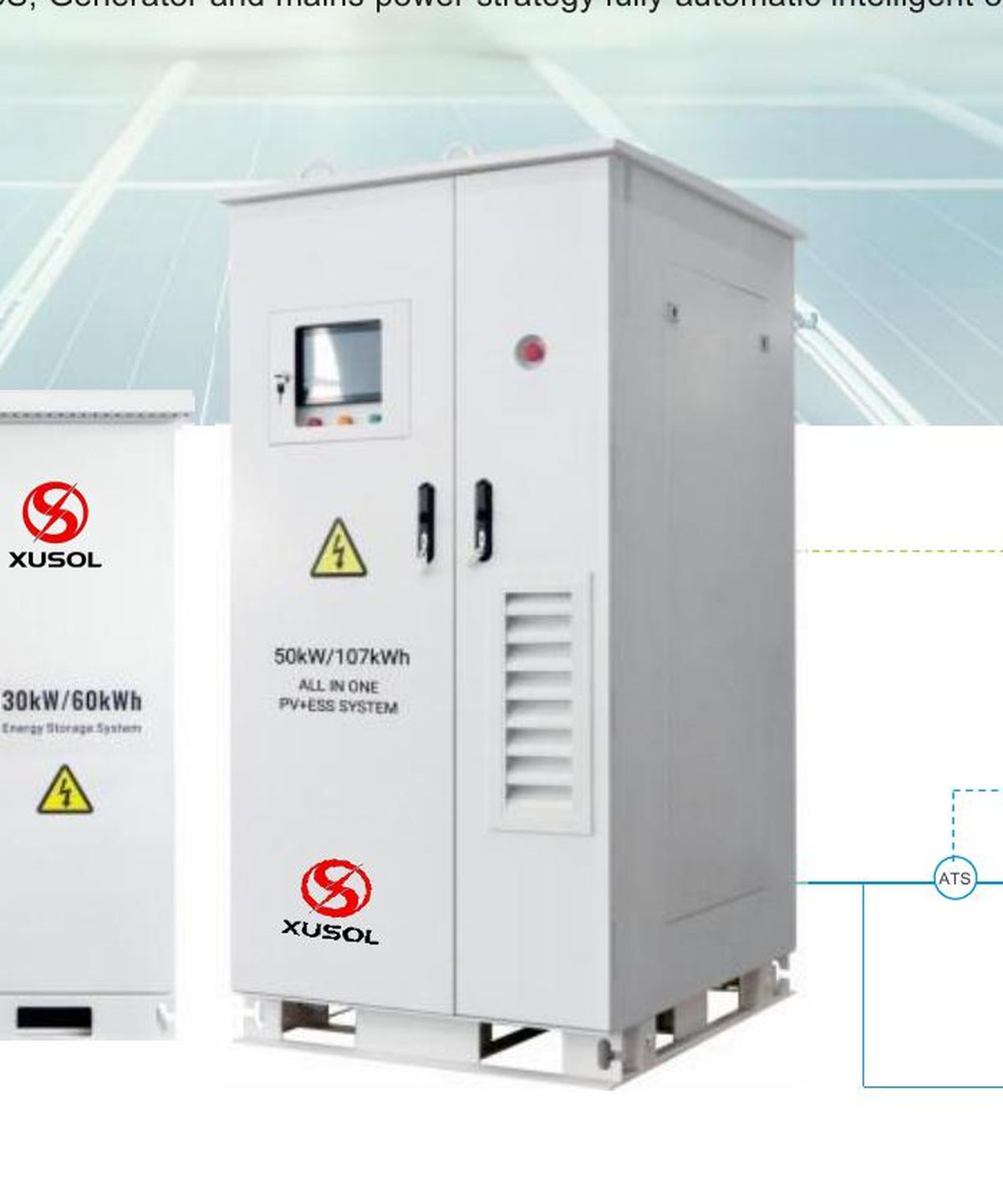

All In One PV + ESS
AIO-PV+ESS

All In One PV + ESS

Integrated PV plus storage solution, expandable in parallel and able to run independently on/off grid.

Configurations
3 standard sizes
Weight
1,100 โ€“ 2,100 kg
Operation
On/off grid
Air Cooled Energy Storage System
AIR-215

Air Cooled Energy Storage System

100 kW / 215 kWh cabinet with smart air cooling, fire protection at both pack and cabinet level.

Power
100 kW / 215 kWh
IP rating
IP54
Dimensions
1550 ร— 1295 ร— 2186 mm
Weight
2,800 kg
02LiFePO4

Lithium batteries for storage

LiFePO4 packs with integrated BMS: protection against overcharge, overcurrent, overtemperature, short circuit and cell balancing.

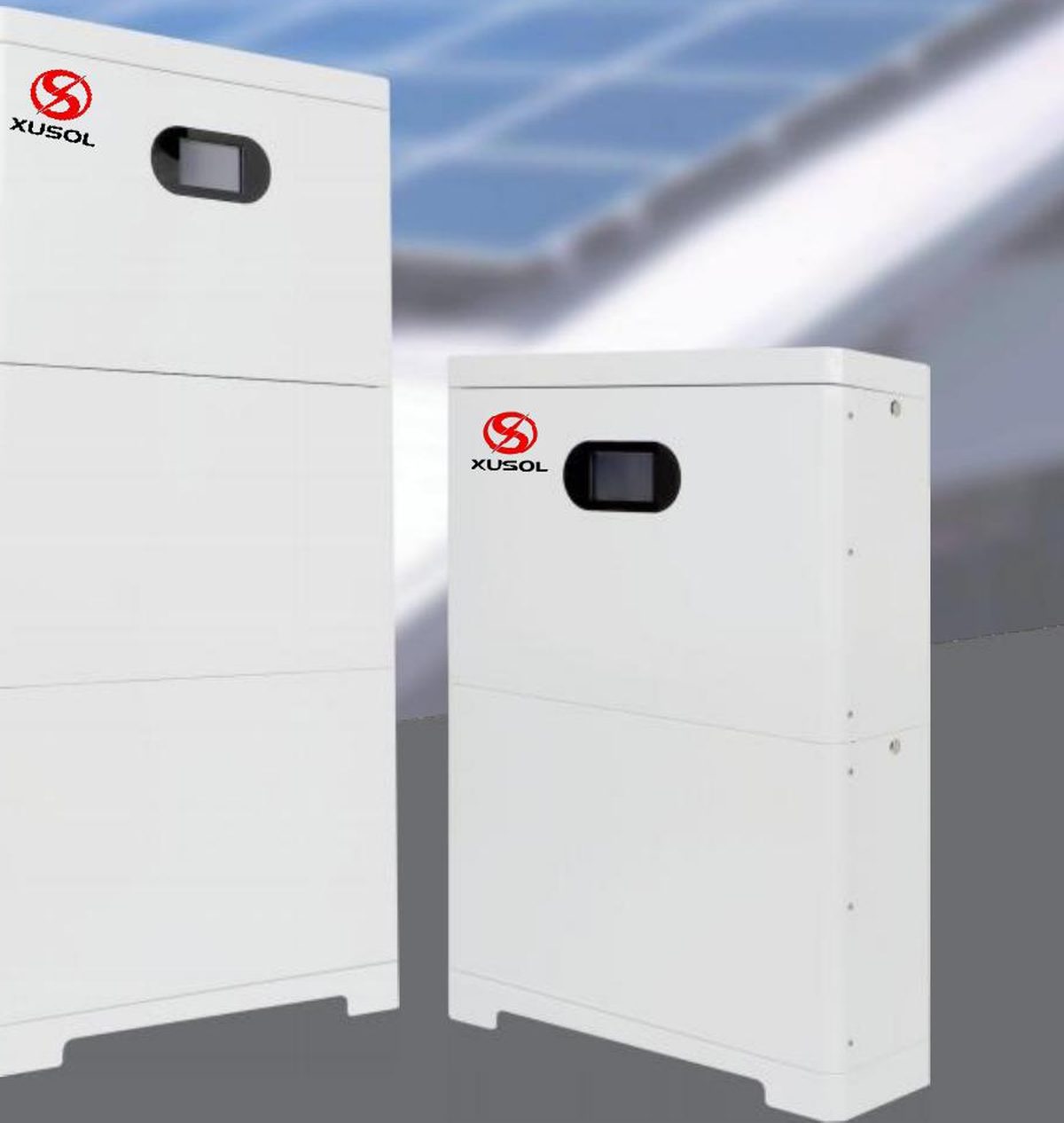

Vertical Lithium Battery
V-BAT

Vertical Lithium Battery

Slim high-density vertical format, built-in communication and customization on request.

Chemistry
LiFePO4
BMS
Integrated with communication

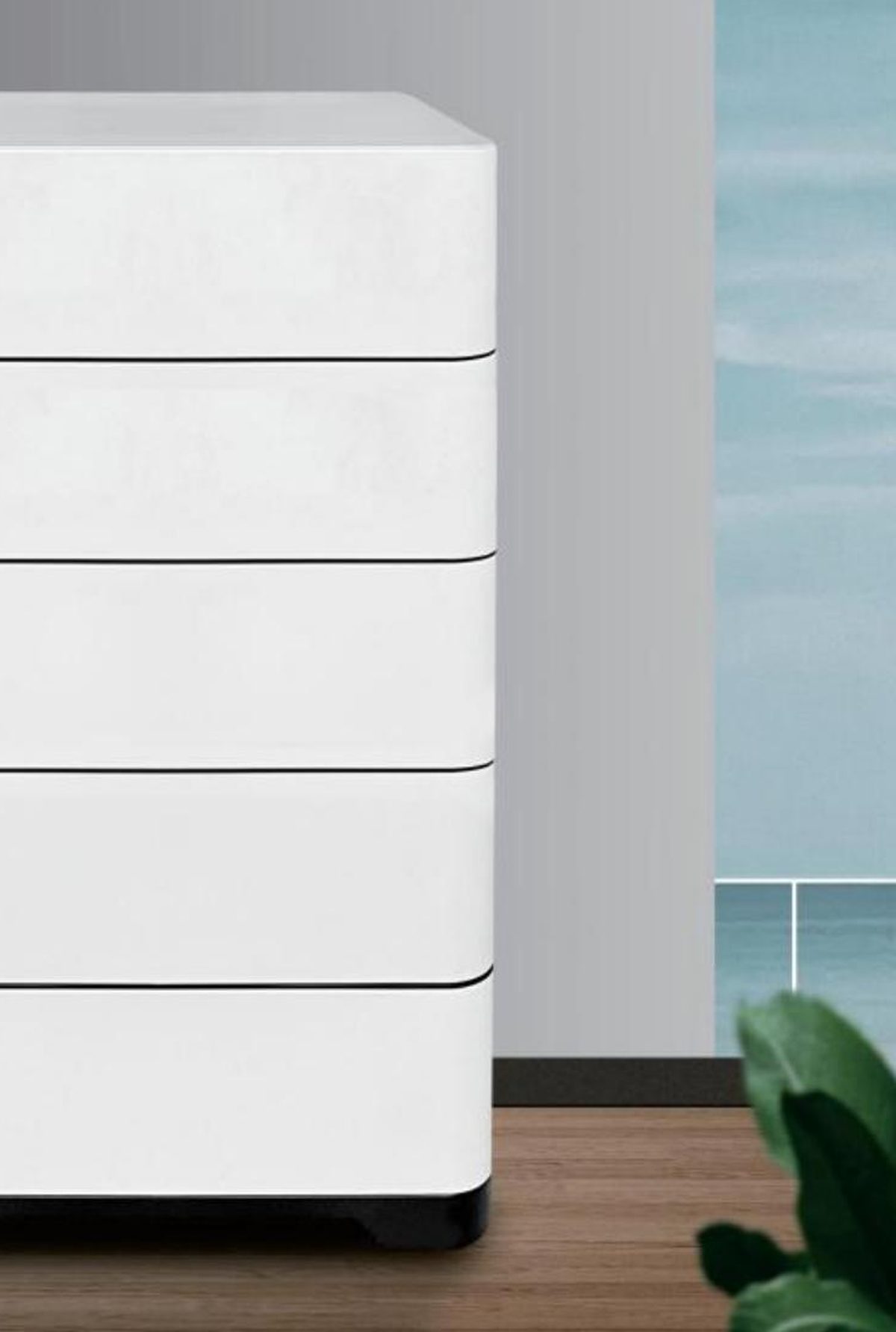

Stacked Lithium Battery
S-BAT

Stacked Lithium Battery

Freely combinable stackable modules, connectable in parallel to grow with demand.

Expansion
Up to 15 modules
Connection
Parallel

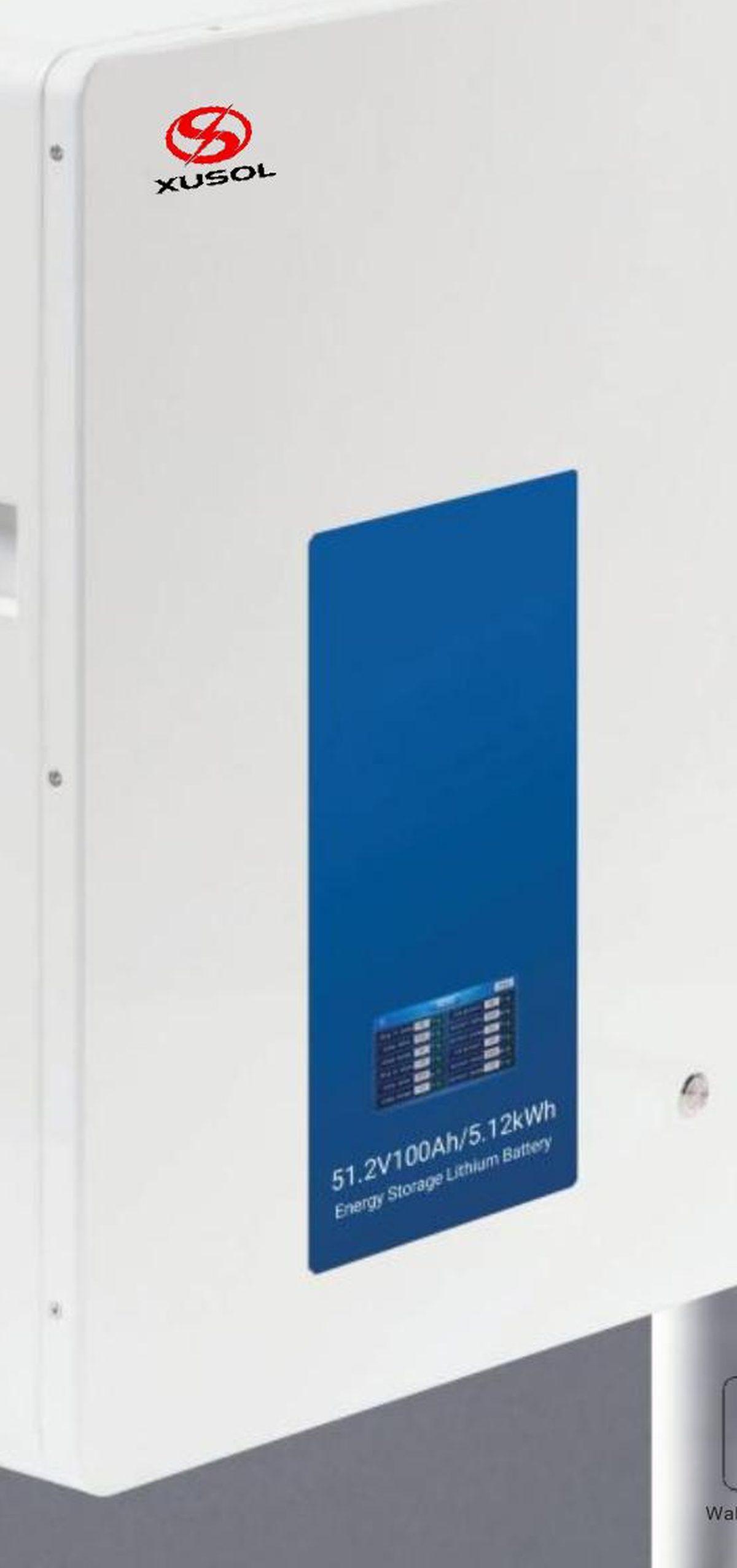

Powerwall Lithium Battery
PW-BAT

Powerwall Lithium Battery

Wall-mounted battery for residential use, with full protection and a compact installation.

Installation
Wall-mounted

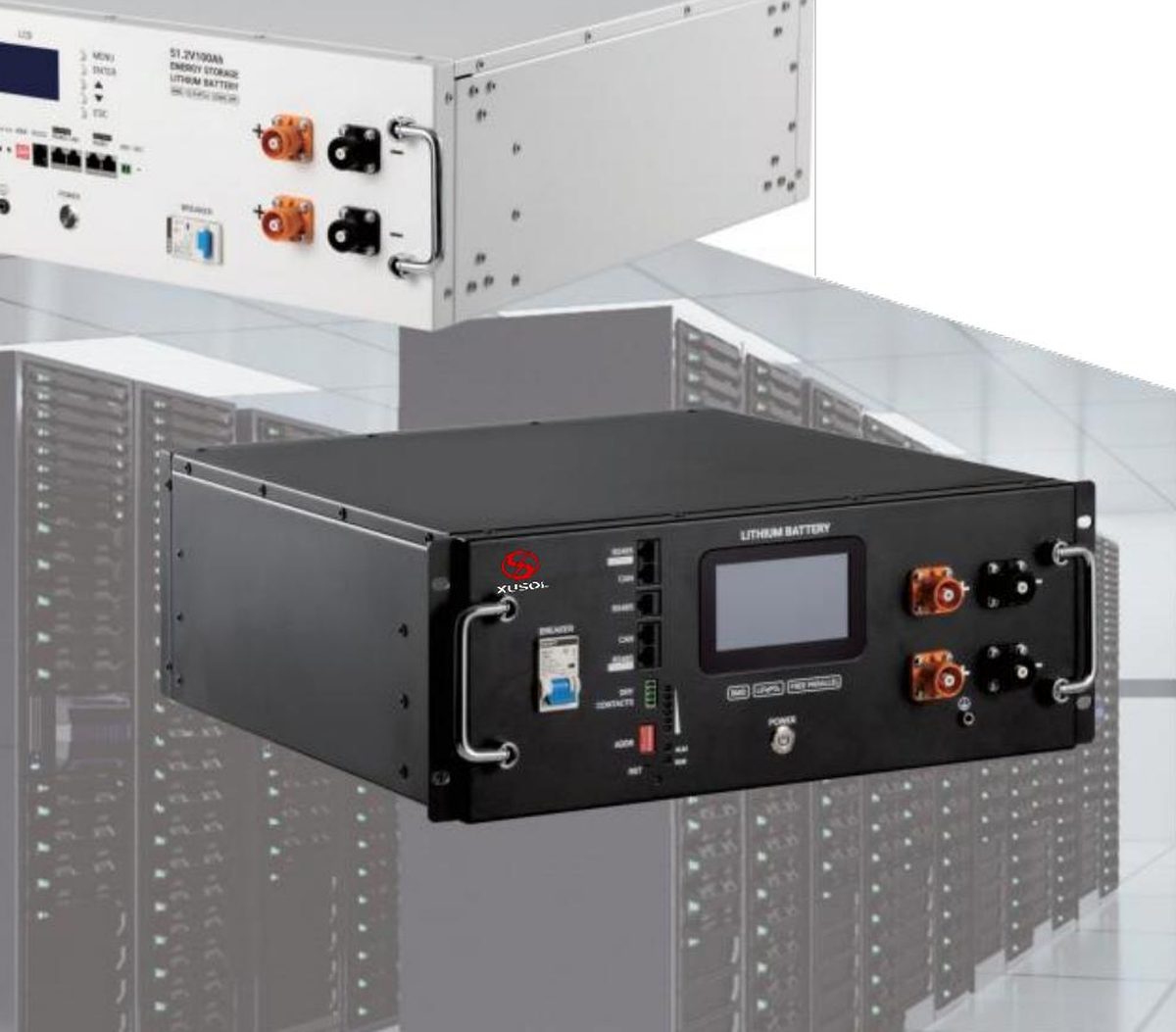

Rack / Cabinet Lithium Battery
R-BAT

Rack / Cabinet Lithium Battery

Standard 4U rack format, freely combinable up to 15 units for storage cabinets.

Format
Standard 4U rack
Expansion
Up to 15 modules

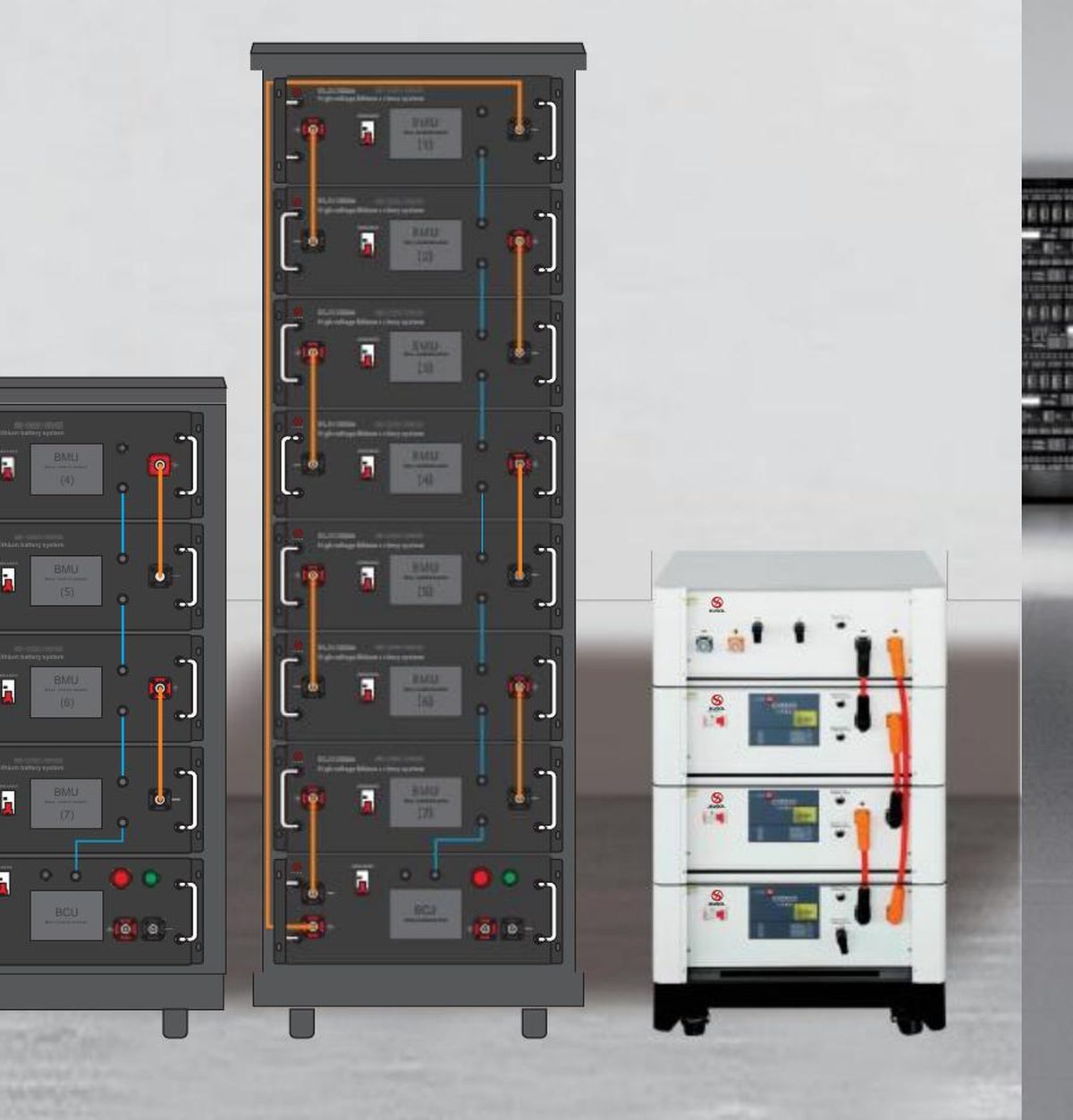

High Voltage Lithium Battery
HV-BAT

High Voltage Lithium Battery

Master-slave high-voltage architecture for commercial and industrial systems.

Voltages
96 / 144 / 192 / 240 / 384 / 512 / 768 / 1500 V
Replace GEL Battery
GEL-REP

Replace GEL Battery

Direct replacement for GEL batteries, with optional coulomb meter and Bluetooth.

Replacement
Quick drop-in
Options
Coulomb meter, Bluetooth
03ESS

Residential storage systems

Battery and inverter in a single system, with app control and configurable priority between grid, solar and storage.

Vertical Energy Storage System
L-ESS

Vertical Energy Storage System

Vertical LiFePO4 system with integrated inverter, customizable capacity and voltage.

Output
3 โ€“ 8 kW
Control
App
Mode
Grid / Solar / Battery
Stacked Energy Storage System
S-ESS

Stacked Energy Storage System

Modular stackable system, sized by adding battery modules.

Output
3 โ€“ 8 kW
Max charge
100 A (grid + solar)
Rack / Cabinet Energy Storage System
C-ESS

Rack / Cabinet Energy Storage System

Rack or cabinet version for technical rooms, offices and small businesses.

Output
3 โ€“ 8 kW
Voltage
Customizable high / low
04Inverter

Inverters & conversion

Pure sine wave inverters with MPPT and communication, in hybrid, off-grid, rack and wall-mount versions.

On/off-Grid Hybrid Inverter
HYB-1P

On/off-Grid Hybrid Inverter

Hybrid inverter with MPPT and pure sine wave output, IP65 protection for outdoor installations.

IP rating
IP65
Dimensions
556 ร— 345 ร— 182 mm
Weight
19.2 kg
Three Phase Off-grid Inverter
OFF-3P

Three Phase Off-grid Inverter

380 V three-phase inverter for off-grid plants, air cooling and noise below 60 dB.

Output
380 V three-phase
Temperature
-10 โ†’ 55 ยฐC
Rack / Cabinet Hybrid Inverter
HYB-4U

Rack / Cabinet Hybrid Inverter

220 V single-phase 4U rack format, ideal for storage cabinets and technical rooms.

Format
4U rack
Net weight
16 โ€“ 19 kg
Wall-mount Hybrid Inverter
HYB-WM

Wall-mount Hybrid Inverter

Single-phase wall-mount hybrid inverter with MPPT and built-in communication.

Installation
Wall-mounted
Net weight
16 โ€“ 17 kg
Small Pure Sine Wave Inverter
PSW

Small Pure Sine Wave Inverter

Compact inverter with remote switch, customizable outlets and voltages for the main international standards.

Customization
Outlets and voltage
05Portable

Portable power

Outdoor power stations and compact power supplies for job sites, emergencies and leisure.

Portable Outdoor Power Supply 600 W
POP-600

Portable Outdoor Power Supply 600 W

Portable power station with multi-standard outlets and pure sine wave output.

Power
600 W
Capacity
576 Wh
Portable Outdoor Power Supply 1200 W
POP-1200

Portable Outdoor Power Supply 1200 W

High-capacity version for more demanding loads, with international outlet sets.

Power
1200 W
Capacity
1008 Wh
Power Supply S-3 / S-5
PS-S

Power Supply S-3 / S-5

High-power supply with LCD display showing operating data.

Size
3 โ€“ 5 kW / 3 โ€“ 5 kWh
06EV & PV

EV charging, solar & LED

The historic Xusol lines that complete the energy balance: EV charging, solar generation and lighting.

EVSE-AC

AC charging stations

AC charging for homes, offices and public car parks.

Power
3.5 โ€“ 22 kW
EVSE-DC

DC charging stations

Fast DC charging, up to a kilometer of range per second.

Power
7 โ€“ 960 kW
Bifacial PV module
PV-BH

Bifacial PV module

High-efficiency 182 mm bifacial series for residential, commercial and industrial installations.

Power
565 โ€“ 585 W
Efficiency
up to 22.65%
Tolerance
0 / +3%
LED

LED lighting

Energy-saving LED products to optimize overall site consumption.

Scope
Retail, offices, industry

Need a custom configuration?

Capacity, voltages, outlets and power ratings are customizable. Tell us your use case and we'll propose the right sizing.
